Roto Eifel
La gamme de seuils sur mesure pour des portes et portes-fenêtres étanches et accessibles
- Seuil à séparation thermique
- 20 mm de hauteur de construction – accessible selon DIN EN 18040
- Vissage invisible
- Gâches affleurant sans usinage

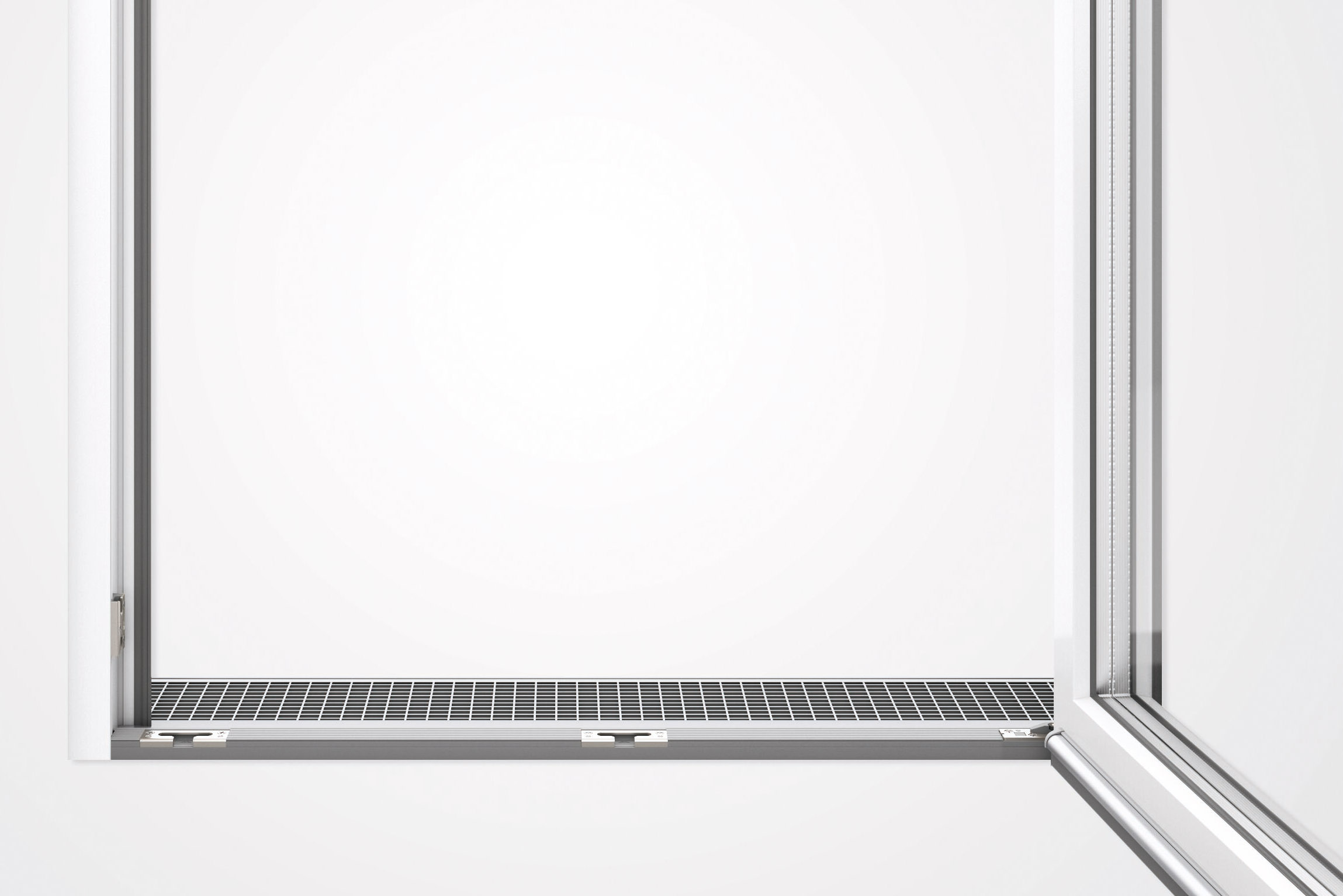

La gamme Roto Eifel propose des seuils à séparation thermique pour les portes de maison, de balcon et de terrasse en PVC et en bois. Ceux-ci constituent une transition optimale vers l'extérieur et améliorent l'isolation thermique. Avec 20 mm de hauteur de construction, ils sont accessibles selon la norme DIN EN 18040. Seuls les PVC résistants aux UV et aux chocs sont utilisés dans la fabrication des seuils Roto Eifel.
Versatile and functional
Roto Eifel offers two design lines for different stylistic requirements. Both are suitable for PVC and timber frames, as well as for use in new builds and renovations.

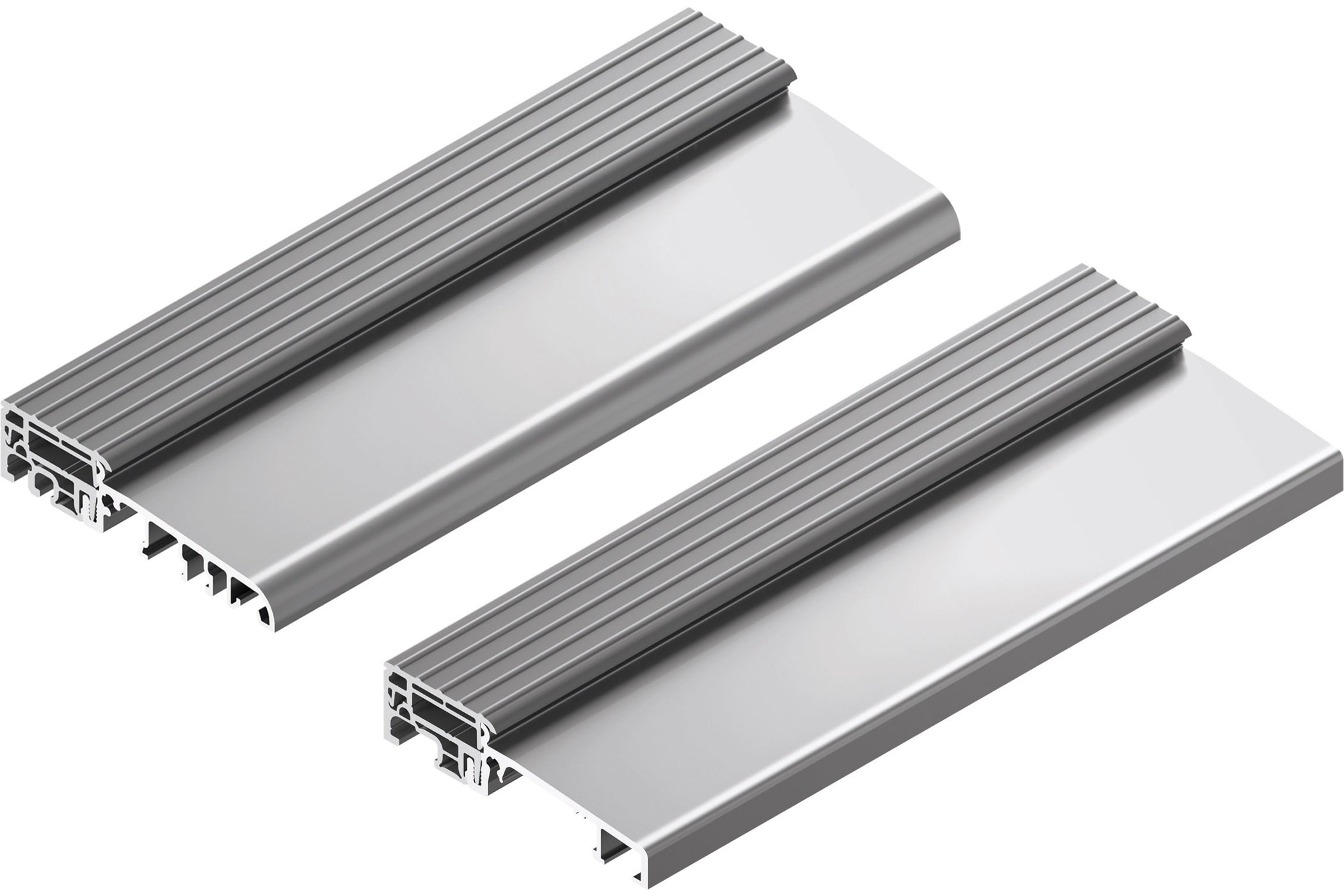

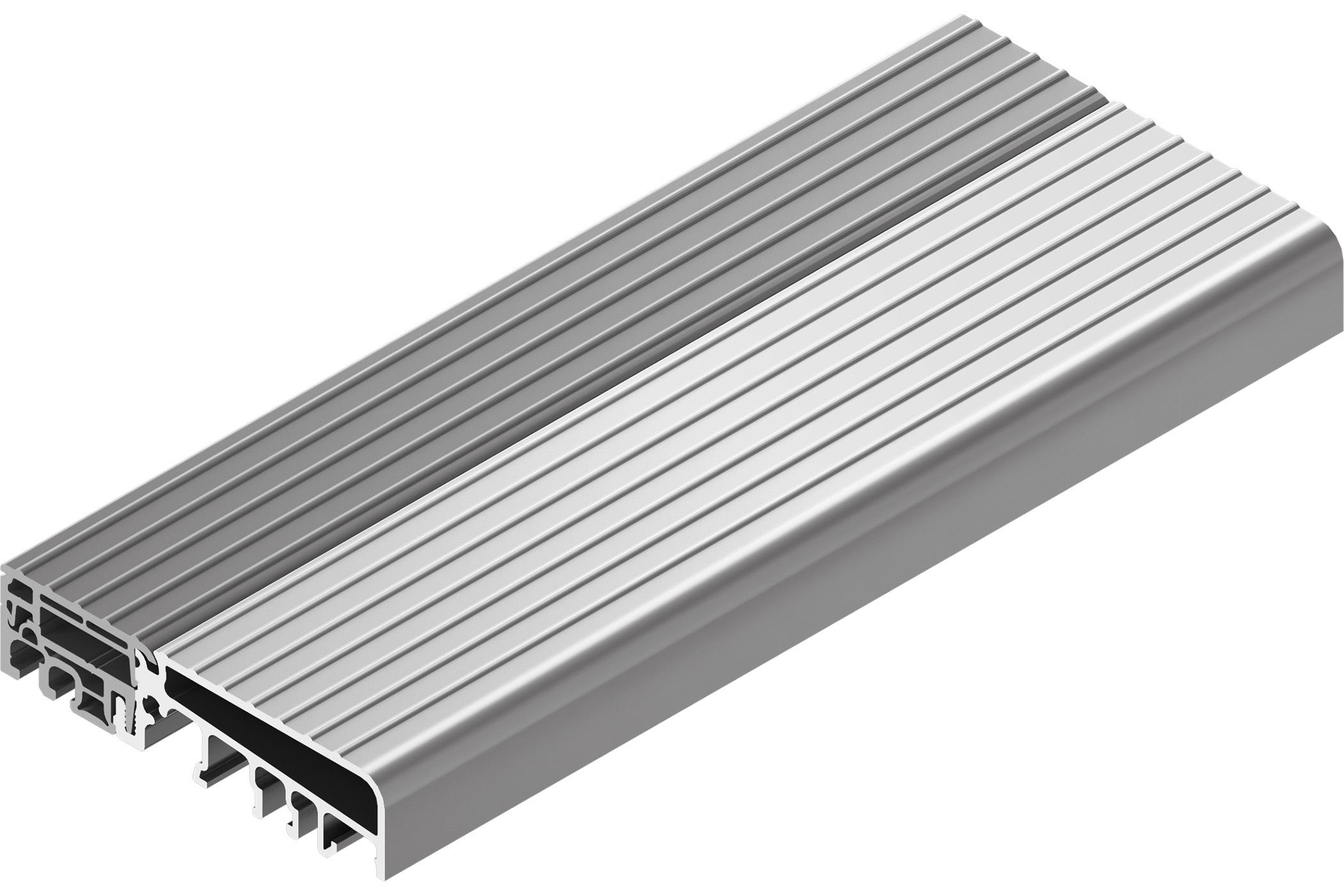

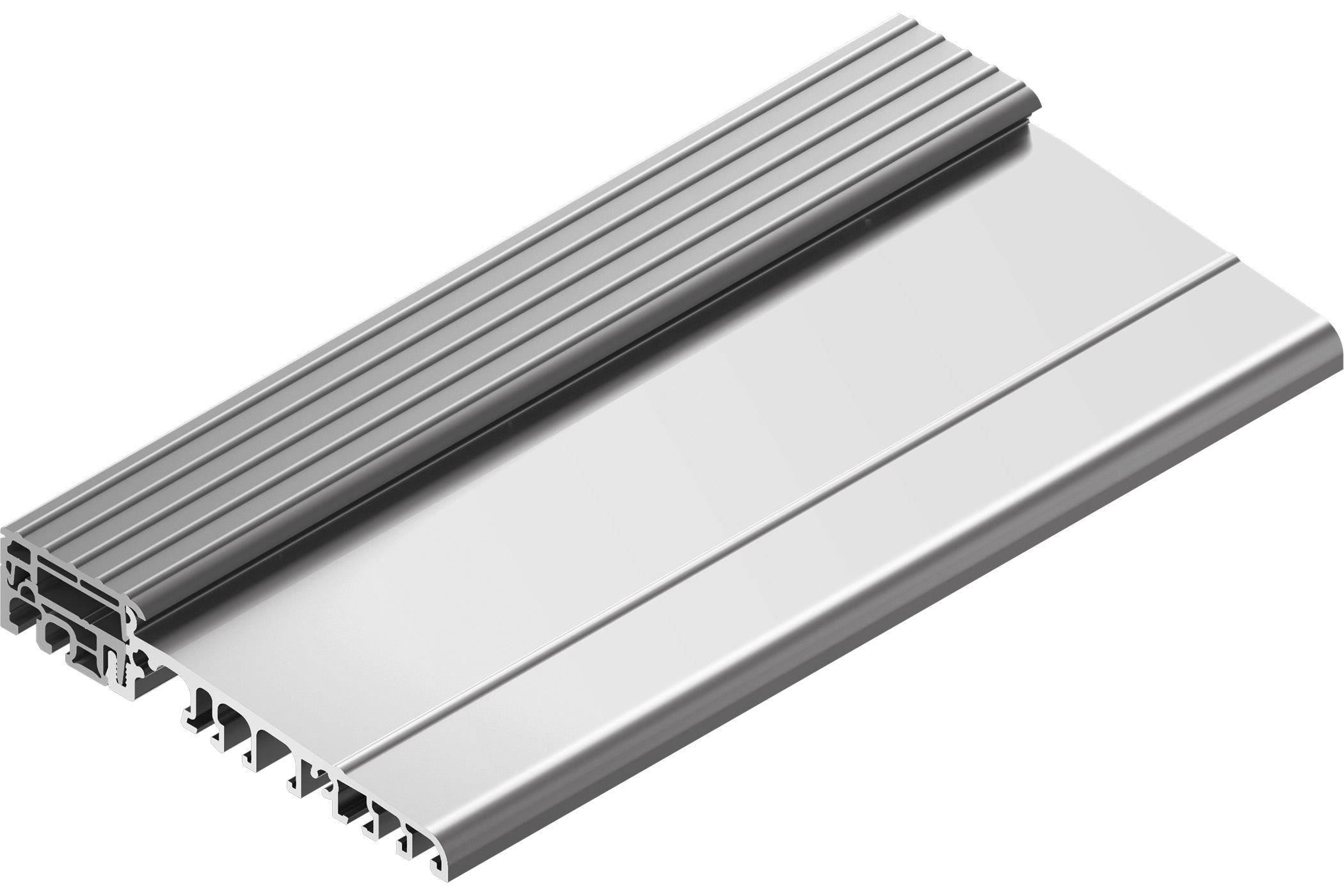

- Eifel TB | Curve embodies gentle, round outlines and is available in up to 14 depths (40 – 140 mm). The version for outward opening doors covers three standard depths (70, 80 and 90 mm).
- Eifel TB | Edge boasts clear, angular shapes and comes in six depths – each one tailored to PVC and timber systems. The angular appearance is a perfect fit for modern profile designs in particular.

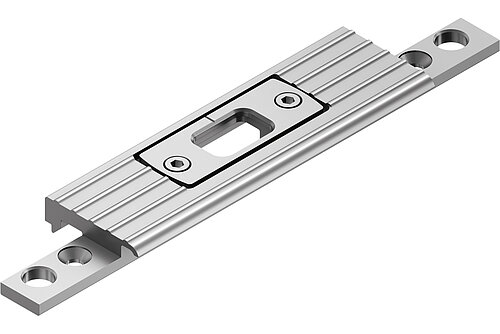

All thresholds are thermally separated, accessible (installation height of 20 mm) and equipped with grooved covers made from UV-resistant, impact-resistant PVC. The portfolio is rounded off by a wide range of accessories for flexible installation and additional functions.
Retainers
Perfect connection
Roto Eifel retainers ensure a robust and long-lasting connection between the threshold and frame. All four attachment options are designed for ease of processing and a high level of stability, and are ideal for new builds and renovations.

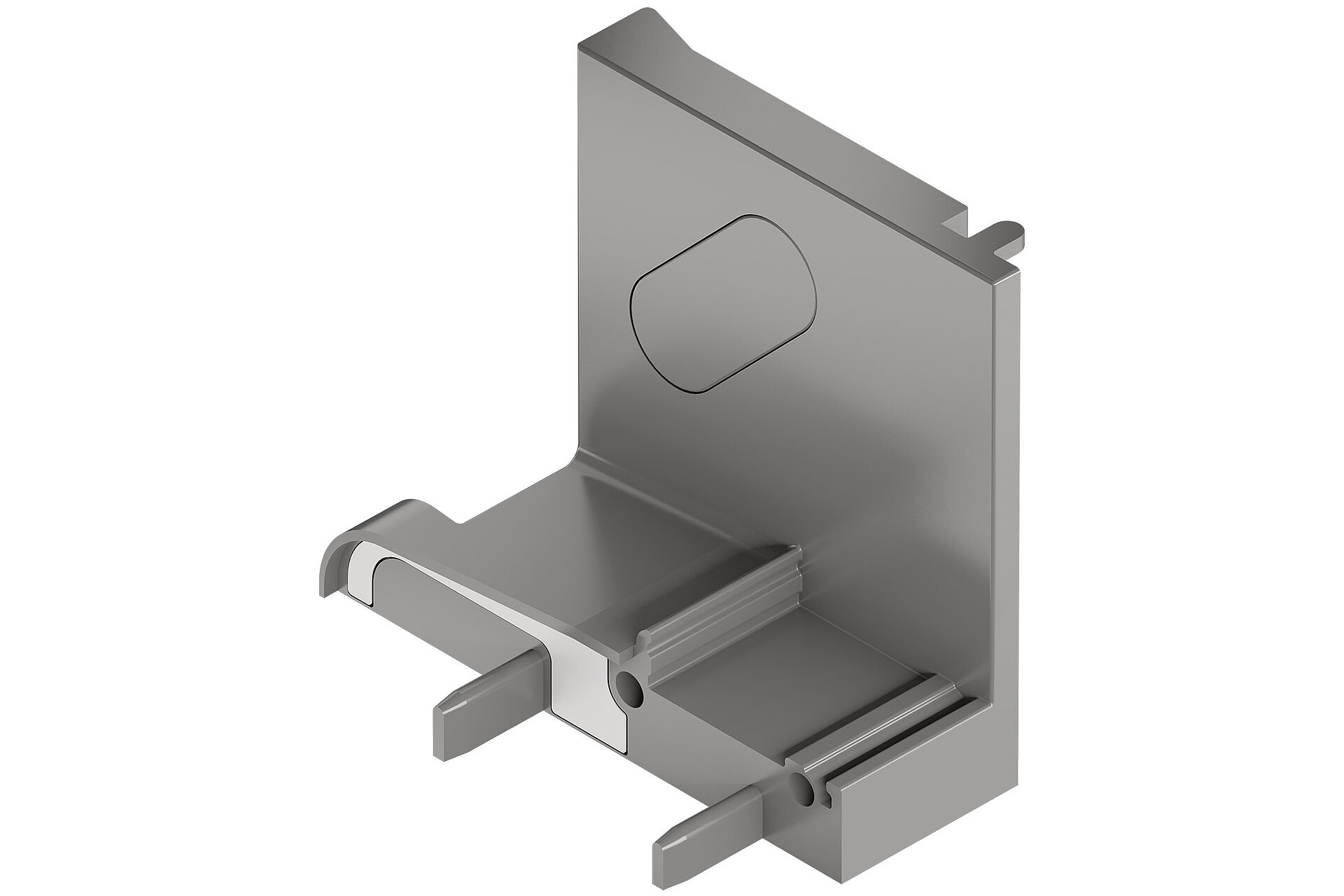

Rebate-screwed retainers
- For concealed, profile-related installation with a fixed depth

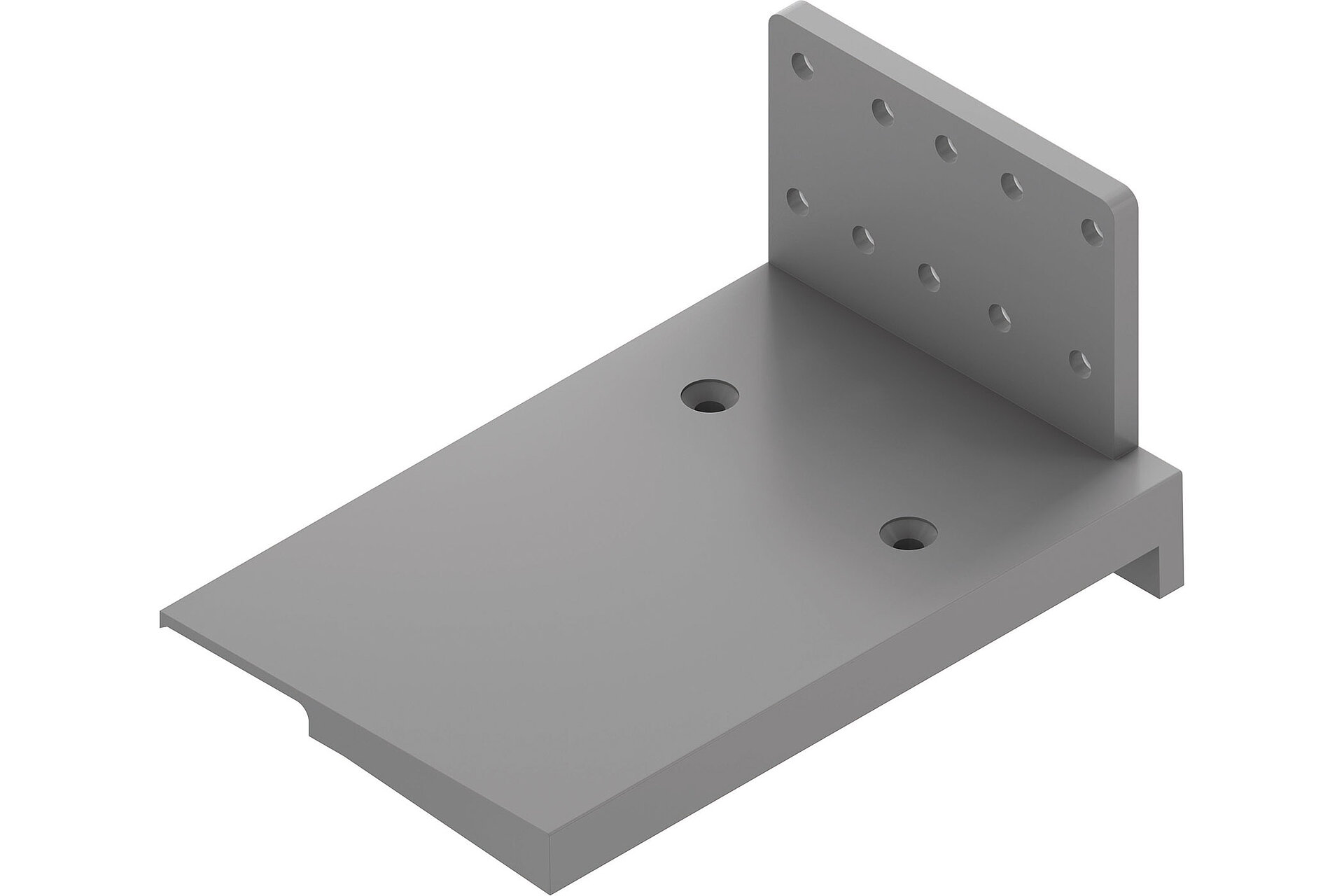

Universal retainers
- For flexible applications with variable depth and multiple screw-fixing points

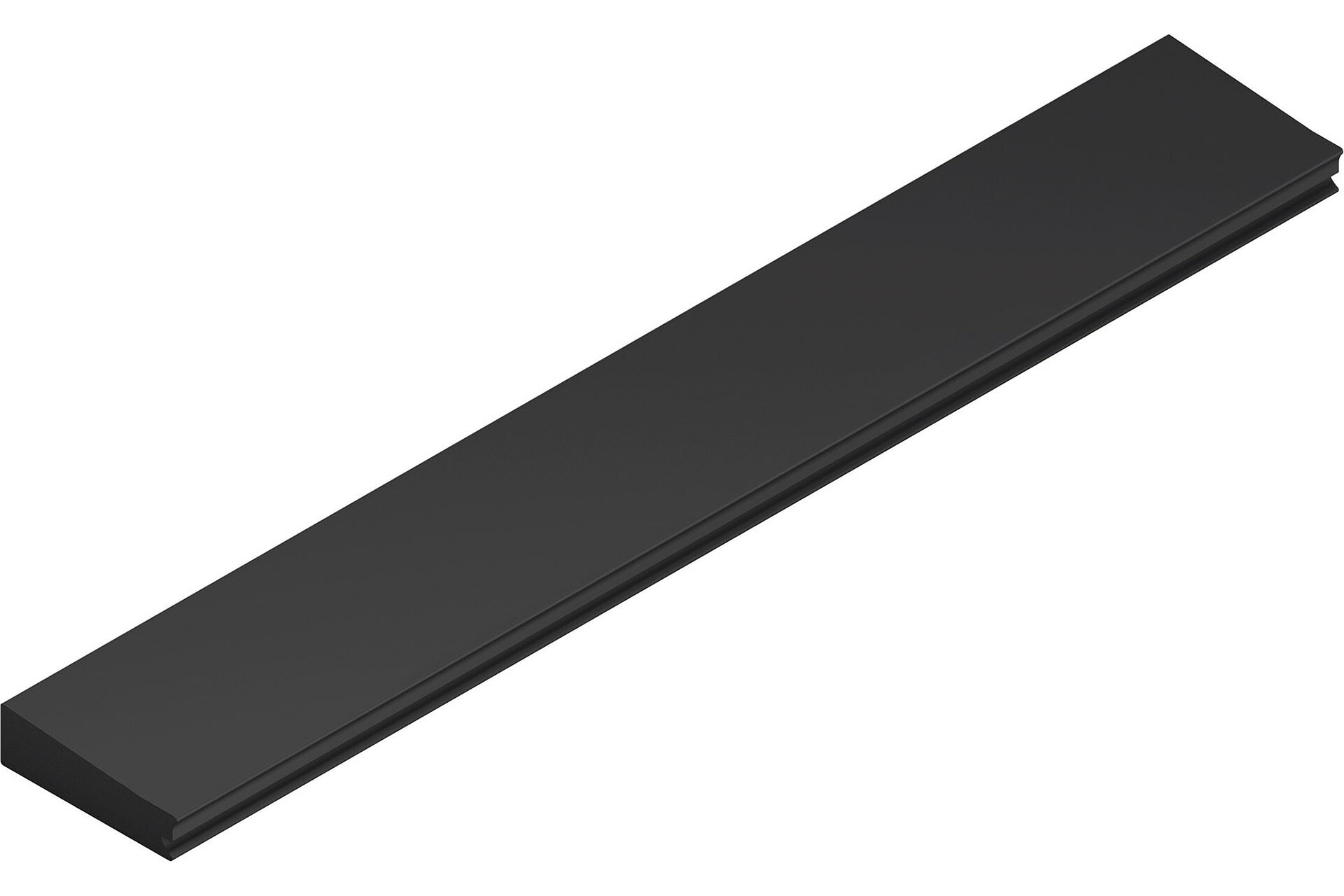

Compensation profiles
- Especially suited to timber systems

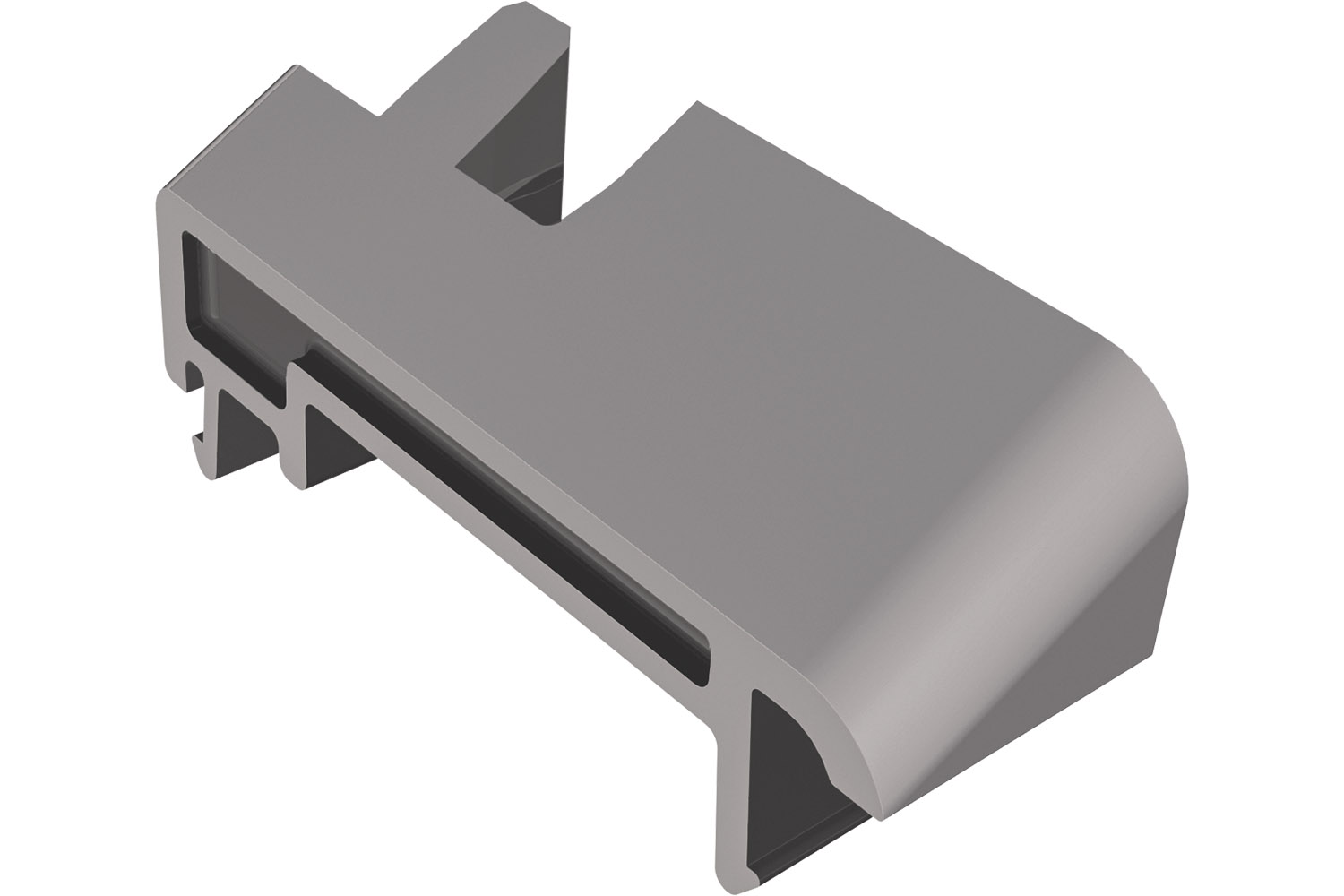

Contour-milling
- Solution with precise routing in the frame without the need for retainers
Weather profile strips
Three versions, one goal: maximum protection
Roto Eifel weather profile strips provide reliable protection against driving rain and extend the service life of doors and balcony doors. All three versions are made from anodised aluminium and are tailored to standard AD / MD profiles. Visually coordinated end caps fix the gasket in place and ensure a clean overall image.

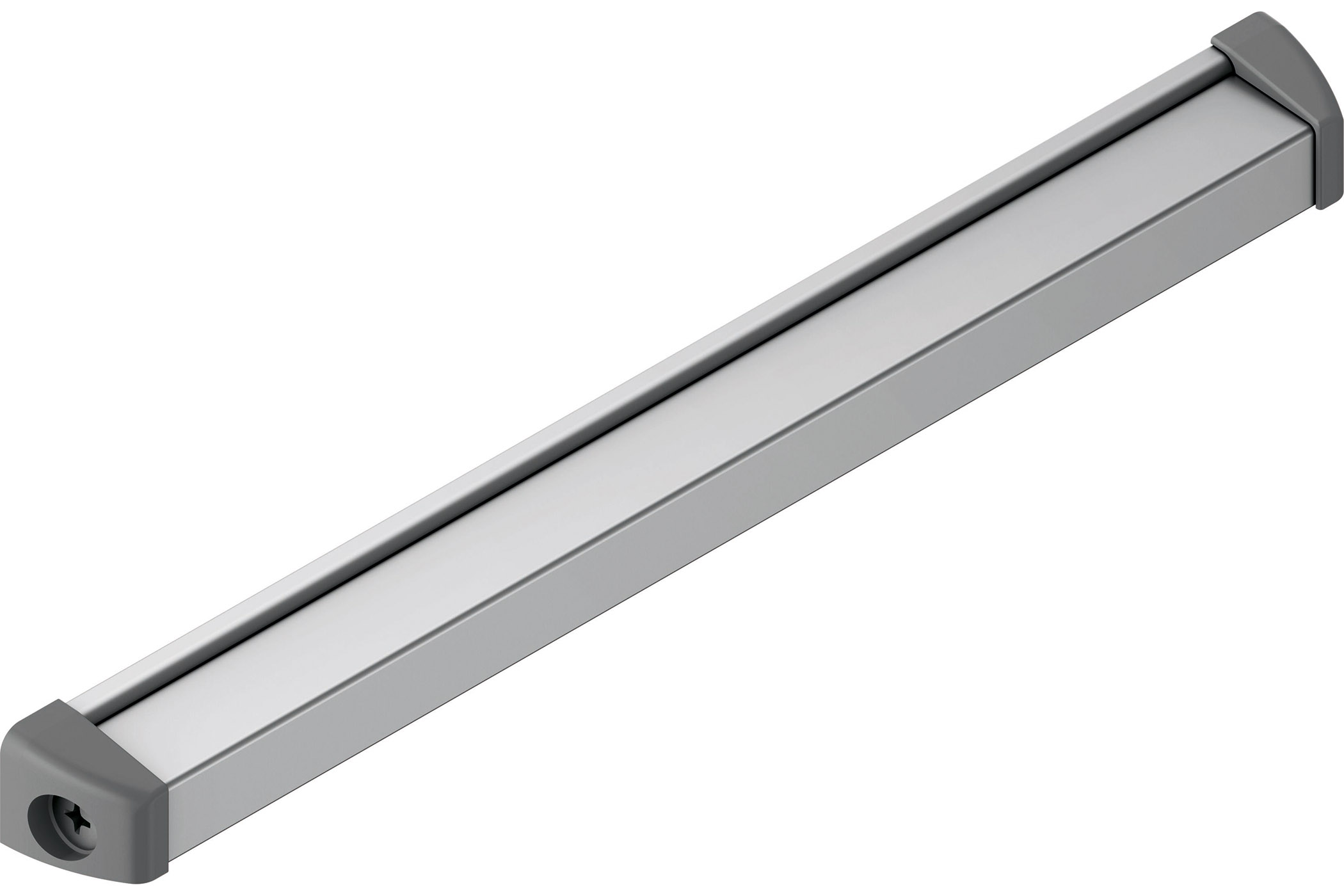

Design weather profile strip
- Two-part with mounting profile and clip-in profile
- Round or angular version

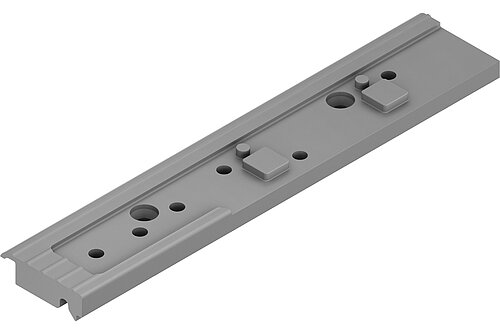

- can be combined with Roto NX | hinge side C

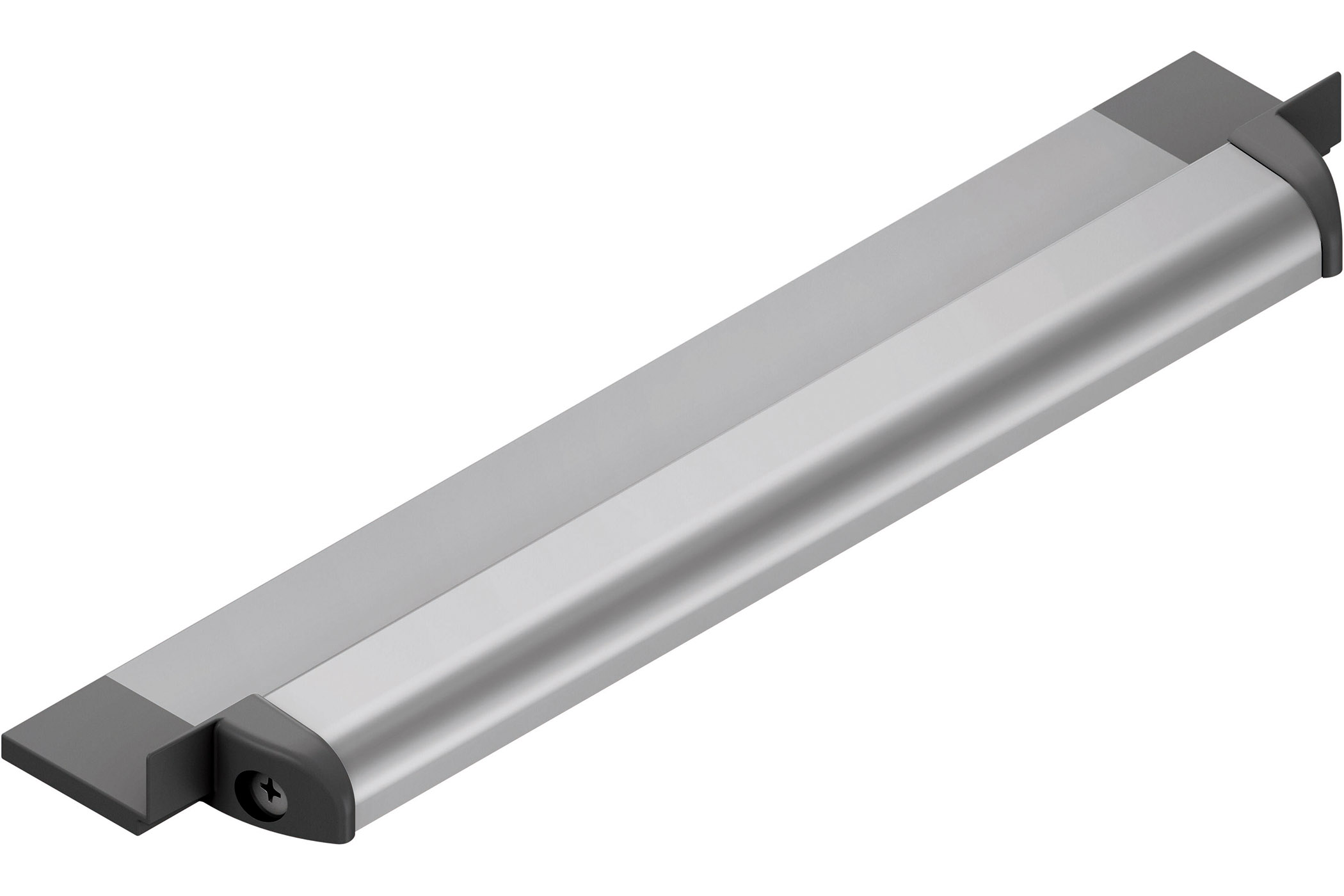

Comfort weather profile strip
- One-part
- Round design
- Up to six gasket positions for maximum flexibility

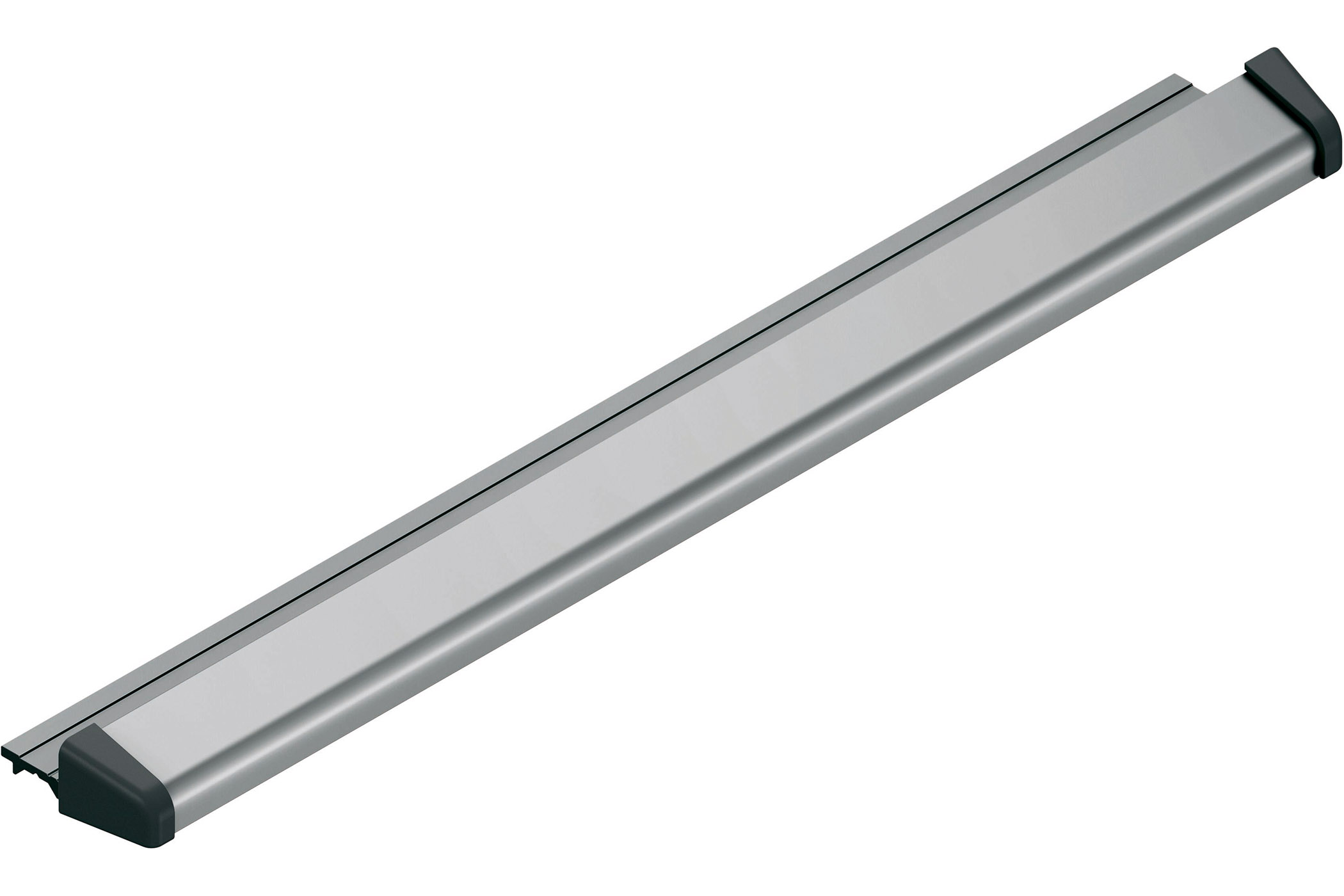

Standard weather profile strip
- Basic version for 90° frames
- Without gasket mount

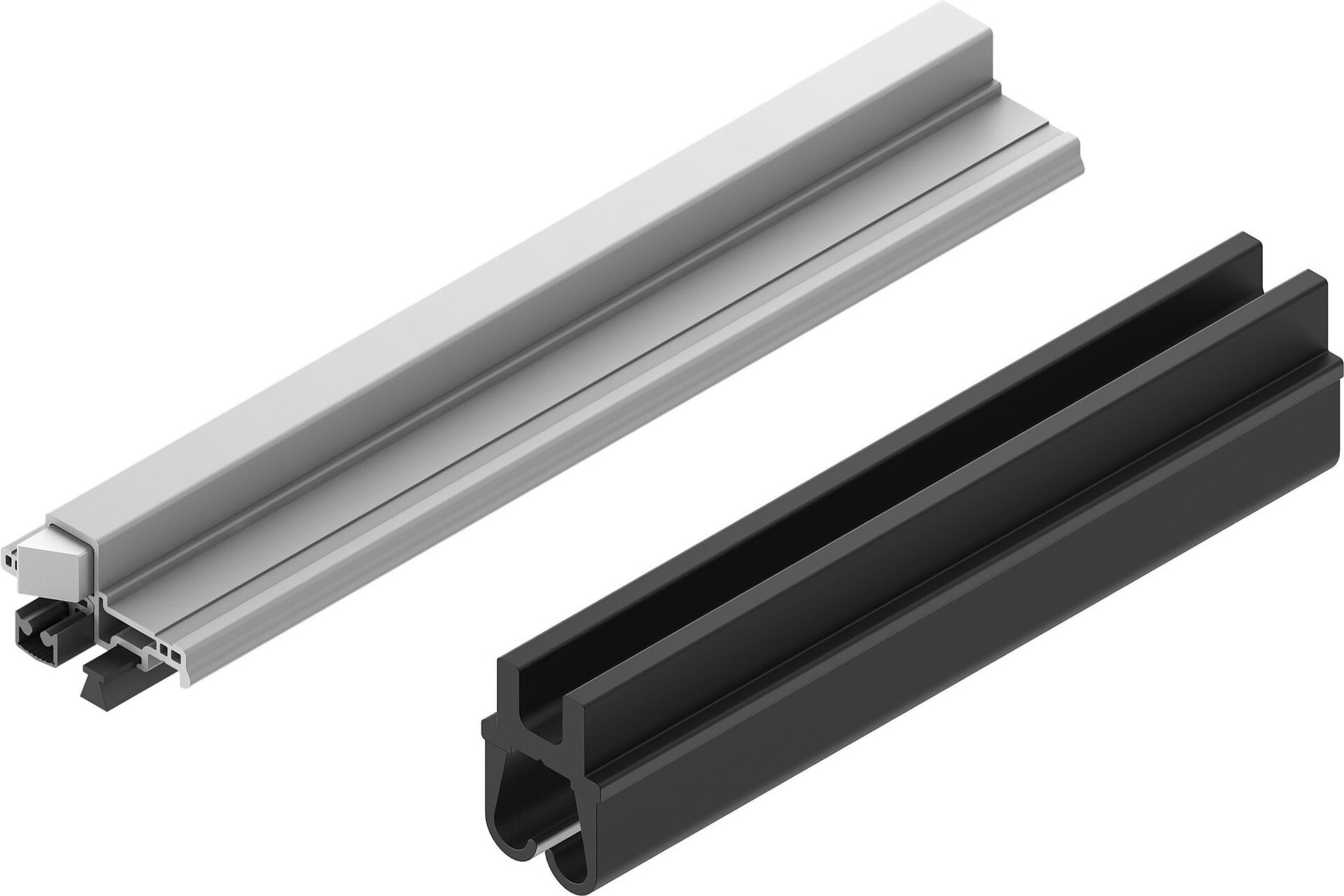

Floor door gaskets
Efficiency in secret
Roto Eifel floor door gaskets ensure a reliable seal in the lower leaf joint, thereby providing effective protection against draughts, dirt and noise.
- When the door is closed, drop down seals are automatically lowered and flexibly adapt to any uneven areas of flooring. Versions with release on one or both sides allow for simple adjustments and optimal sealing.
Find out more about drop down seals in the Deventer product range - Sliding threshold seals slide over the threshold itself and reliably seal the leaf rebate clearance. They are therefore ideal for smooth flooring and are available with a single, double or closed sealing lip.
Both systems can be incorporated so that they go unnoticed and are designed for a long service life. The selection of installation heights, materials and trigger mechanisms offers maximum flexibility for different profile systems and installation situations.
